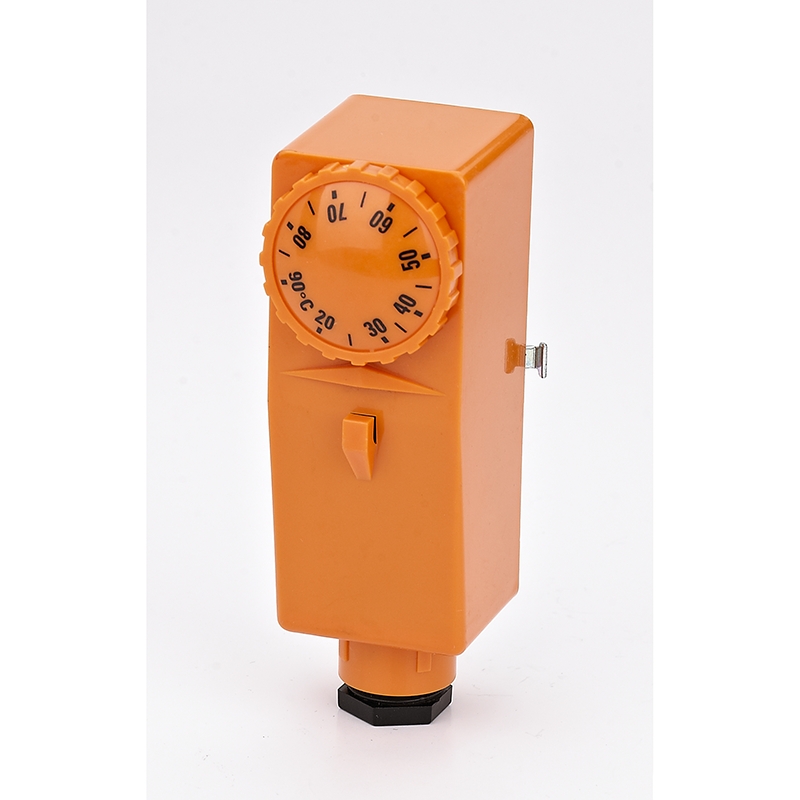

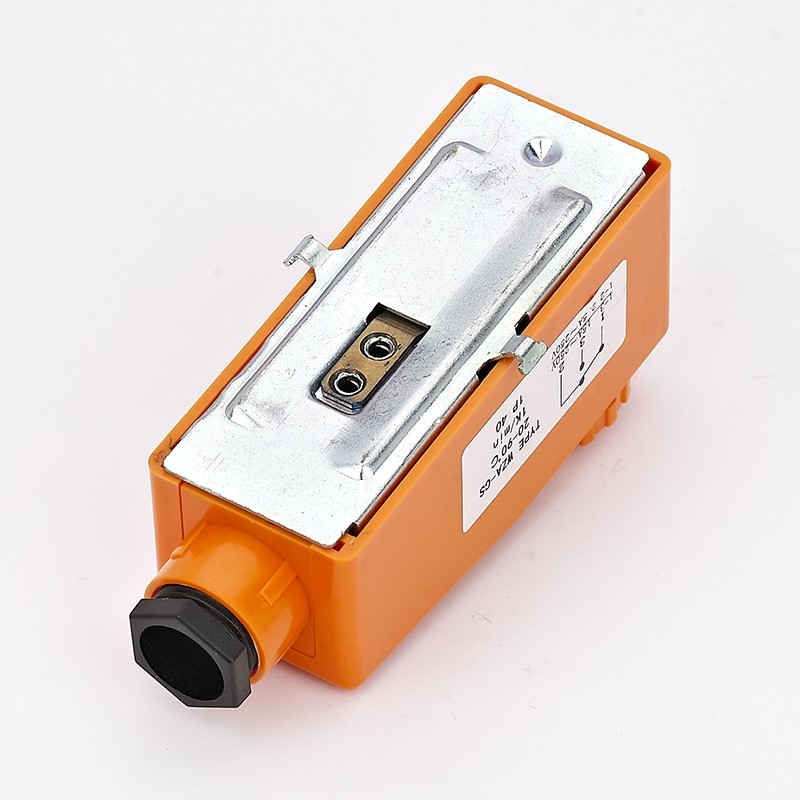

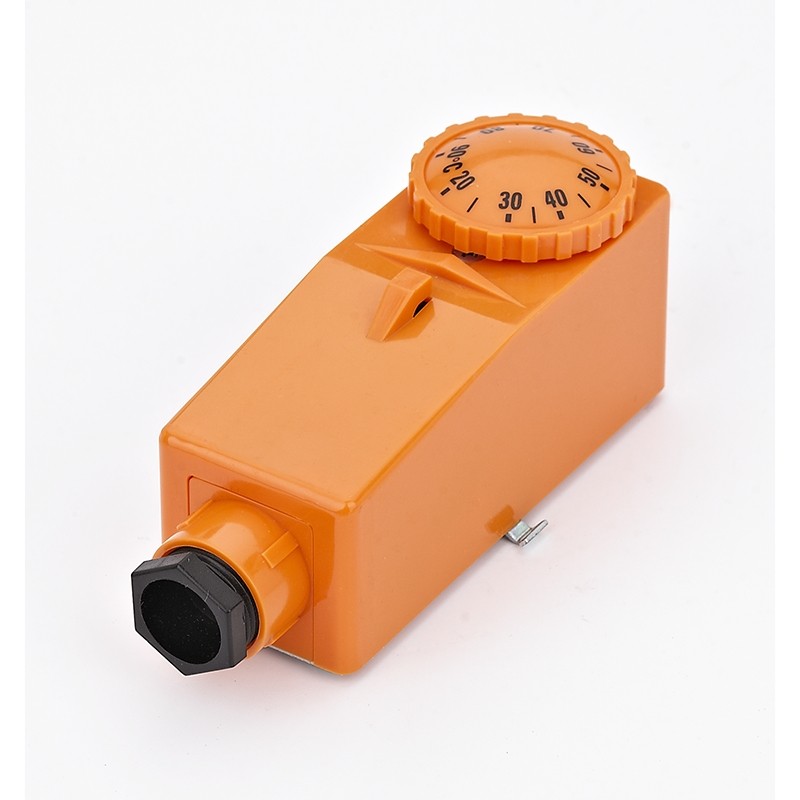

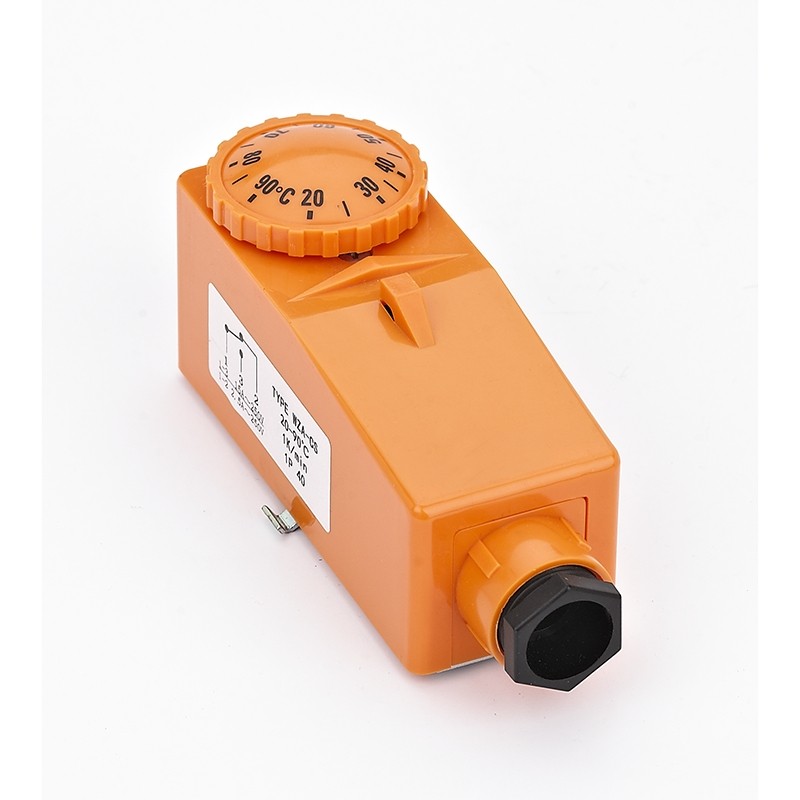

The WZA-CS Boiler Tube Temperature Controller adopts a high-precision bimetallic design, which has excellent reliability and durability. It provide precise temperature control, suitable for various environments. Its simple installation and operation characteristics reduce maintenance costs. It can effectively improve temperature control efficiency and is an ideal choice for industrial and commercial applications.
temperature range: | 0-110°C |
Rated current: | 220VAC/16A,220VAC/6A |
Temp Accuracy: | 5%FS |
Differential stop: | 2-9°C |
Main body temperature tolerance: | 105℃ |
electric strength: | AC2000V/1min |
insulation resistance: | ≥100MΩ |
contact resistance: | ≤50mΩ |
minimum current: | 200mA |
Temperature response rate: | ≤1.0℃/min |
service life: | ≥ 100,000 |
Test environment temperature: | 23±2℃ |
