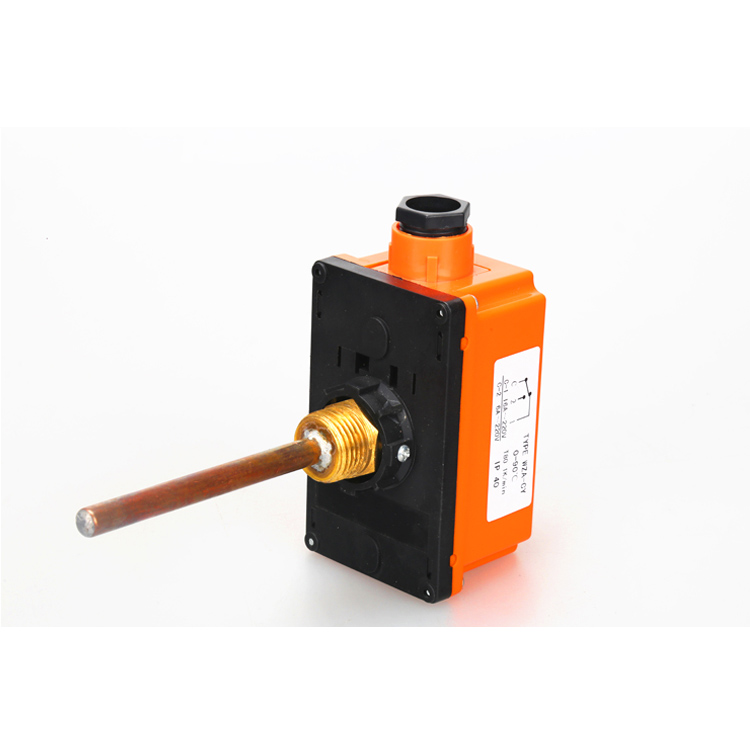

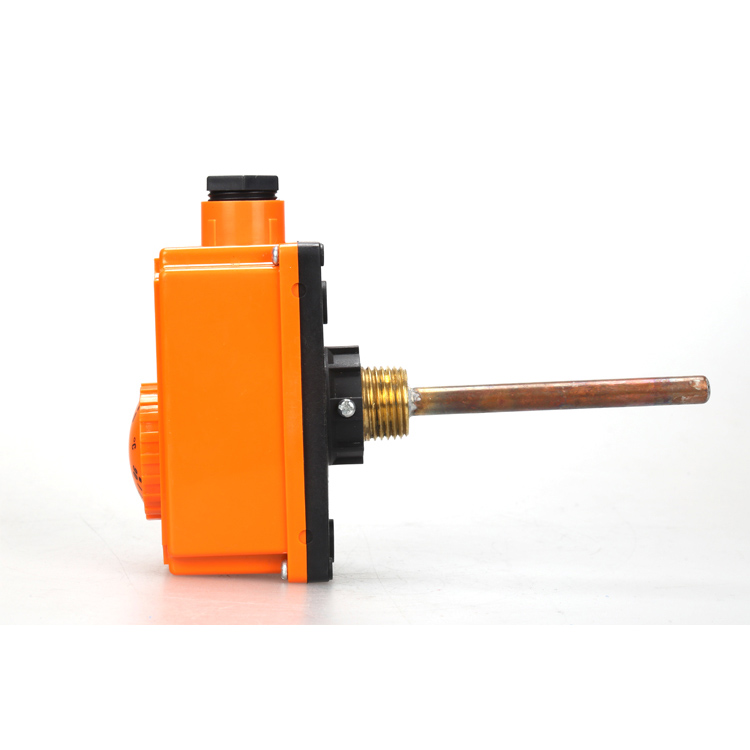

Heating Pipe Temperature Controller
The WZA-CY Heating Pipe Temperature Controller designed specifically for pipeline temperature control. Its probe is made of copper, contact with the medium, providing precise temperature regulation and suitable for various pipeline systems. It is easy to install and low maintenance costs. It can effectively improve temperature control efficiency and is an ideal choice for industrial and commercial applications.
Model:WZA-CY
Send Inquiry
Product Description
Heating Pipe Temperature Controller Features
WZA-CY WZA-CS WZA-CY WZA-CS Series thermostat of pressure type is applicable for hot water pipeline, boiler, bimetal and
pressure type temperature controllers.
Heating Pipe Temperature Controller Technical data
| temperature range: | 0-110°C |
| Probe length: | 8.5cm |
| Probe diameter: | 8mm |
| Rated current: | 220VAC/16A，220VAC/6A |
| Temp Accuracy: | 5%FS |
| Differential stop: | 2-9°C |
| Install thread: | G1/2 |
| Main body temperature tolerance: | 105℃ |
| electric strength: | AC2000V/1min |
| insulation resistance: | ≥100MΩ |
| contact resistance: | ≤50mΩ |
| minimum current: | 200mA |
| Temperature response rate: | ≤1.0℃/min |
| service life: | ≥ 100,000 |
| Test environment temperature: | 23±2℃ |
WZA-CY Temperature controller
