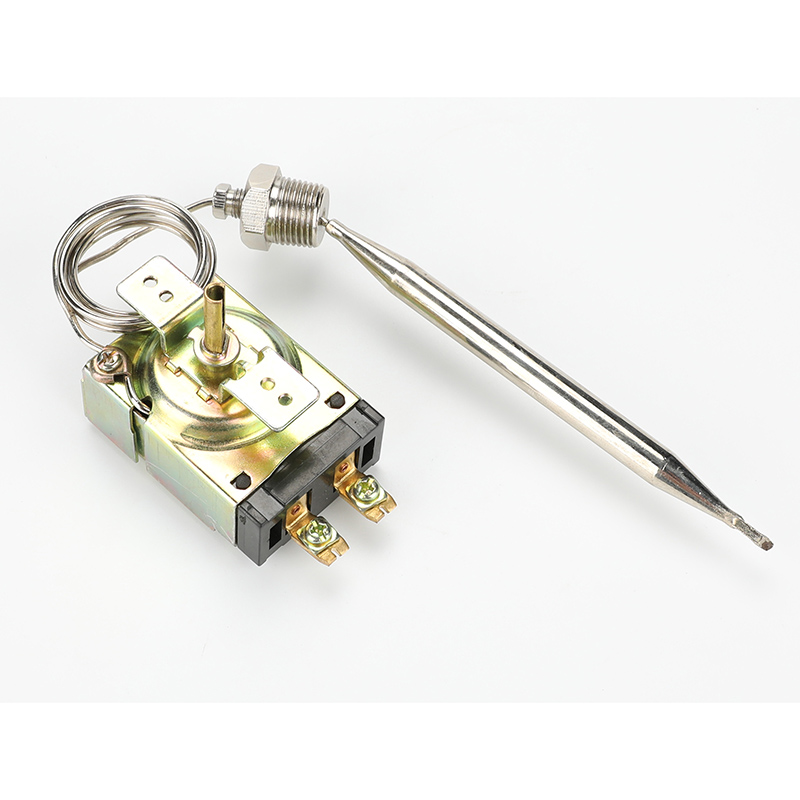

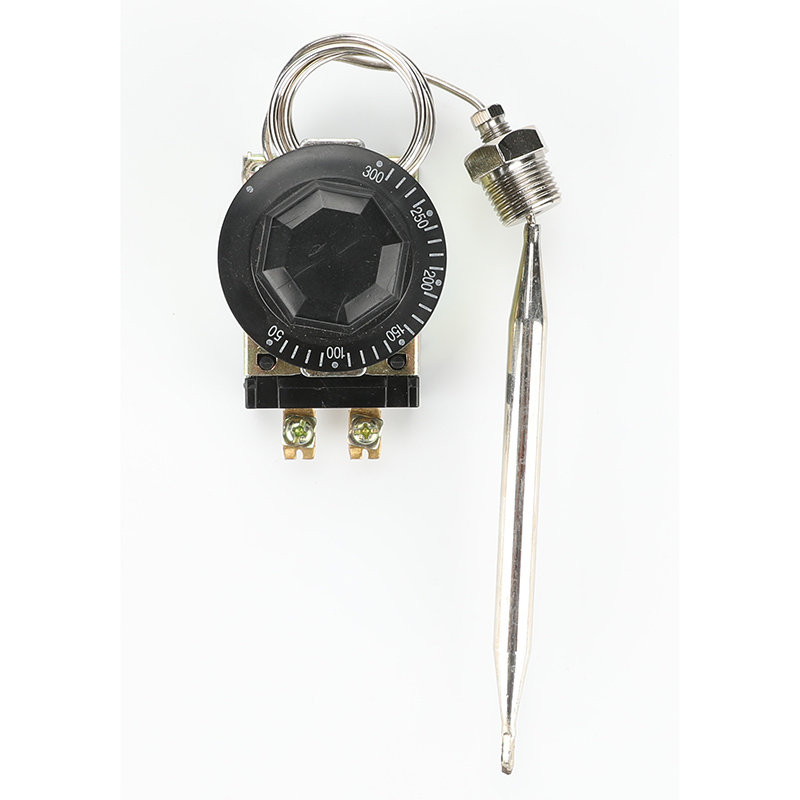

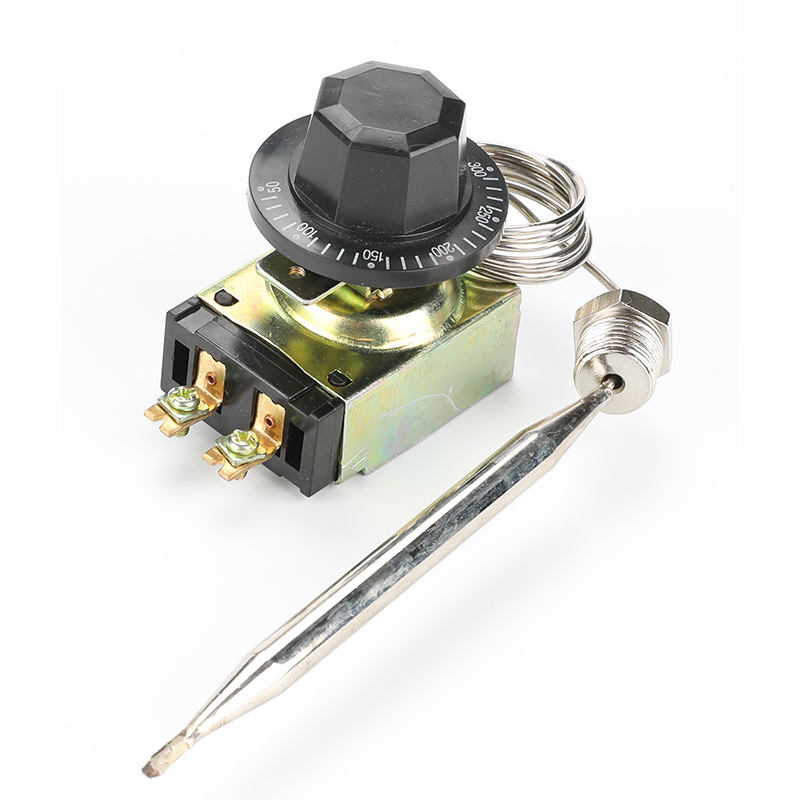

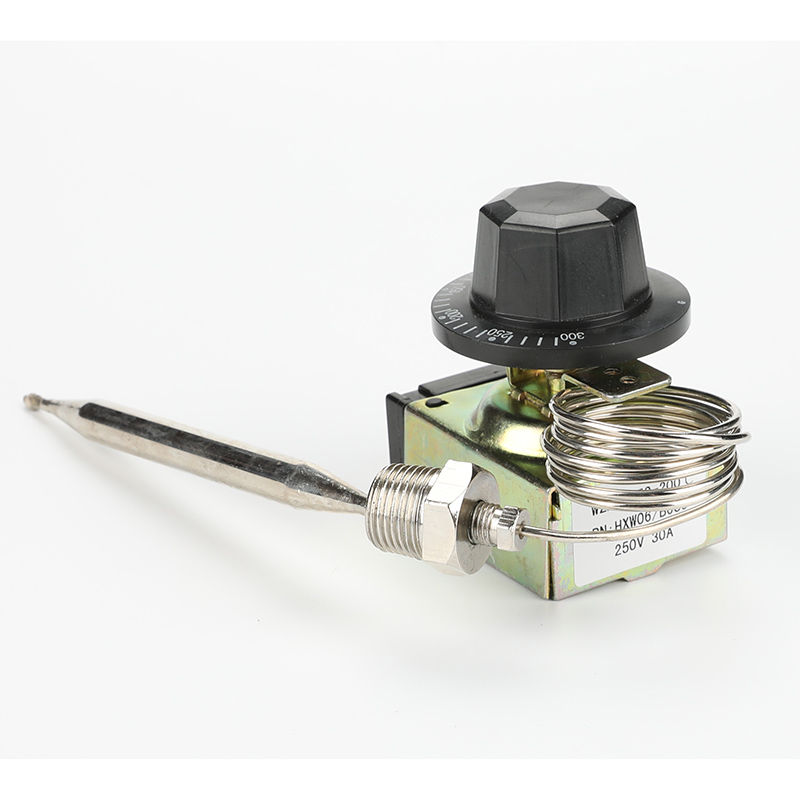

High Power Temperature Controller

The WZA-F High Power Temperature Controller is designed for high current load equipment and has excellent durability and reliability. The probe adopts stainless steel capillary , it provides precise temperature control, suitable for various industrial environments. Its sturdy structure supports high-power operation and easy installation. It is the best choice for industrial equipment.

Model:WZA-F

Send Inquiry

Product Description

High Power Temperature Controller Features

WZA-F/F2 Series high- power thermostat of pressure type is applicable for electric oven, boiled water device, and kitchenware.

High Power Temperature Controller Technical data

temperature range: 0-320°C
capillary length: 70CM,According to customer requirements
Warm package size: Conventional diameter 6mm/8mm,According to customer requirements
Rated current: 220VAC/16A
Temp Accuracy: 5%FS
Differential stop: 2-9°C
Sealing screw: 1/4NPT,3/8NPT,customizable
Main body temperature tolerance: 105℃
electric strength: AC2000V/1min
insulation resistance: ≥100MΩ
contact resistance: ≤50mΩ
minimum current: 200mA
Temperature response rate: ≤1.0℃/min
service life: ≥ 100,000
Test environment temperature: 23±2℃

Moulnting and Appearance Dimensions

High Power Temperature Controller
