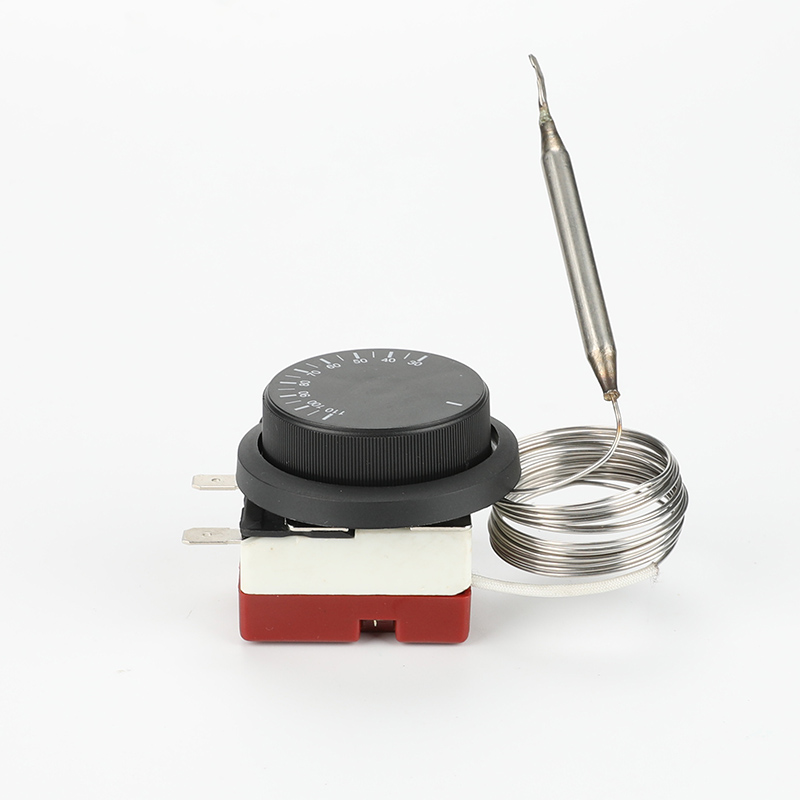

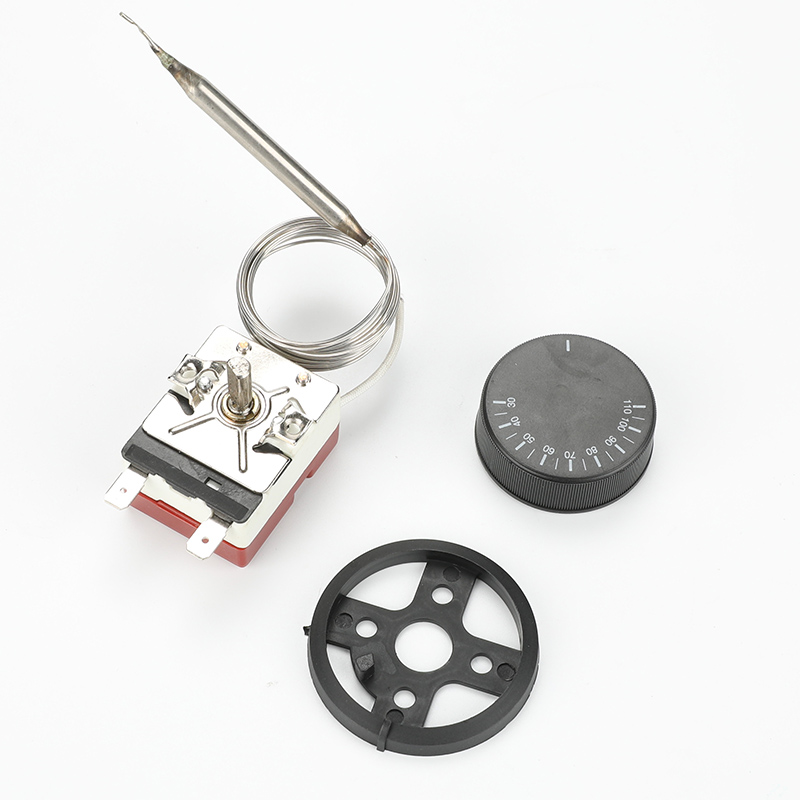

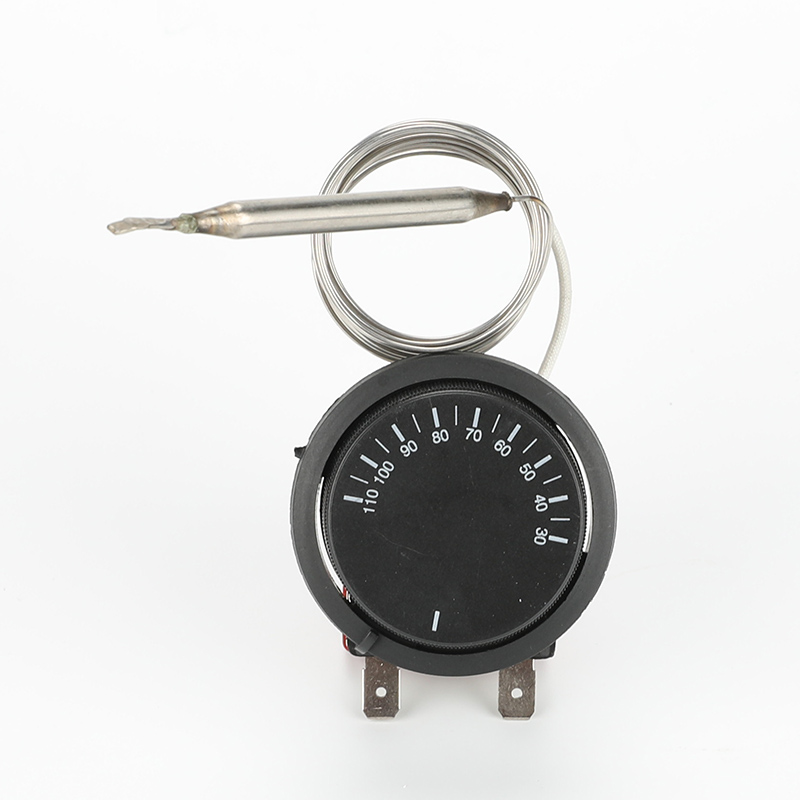

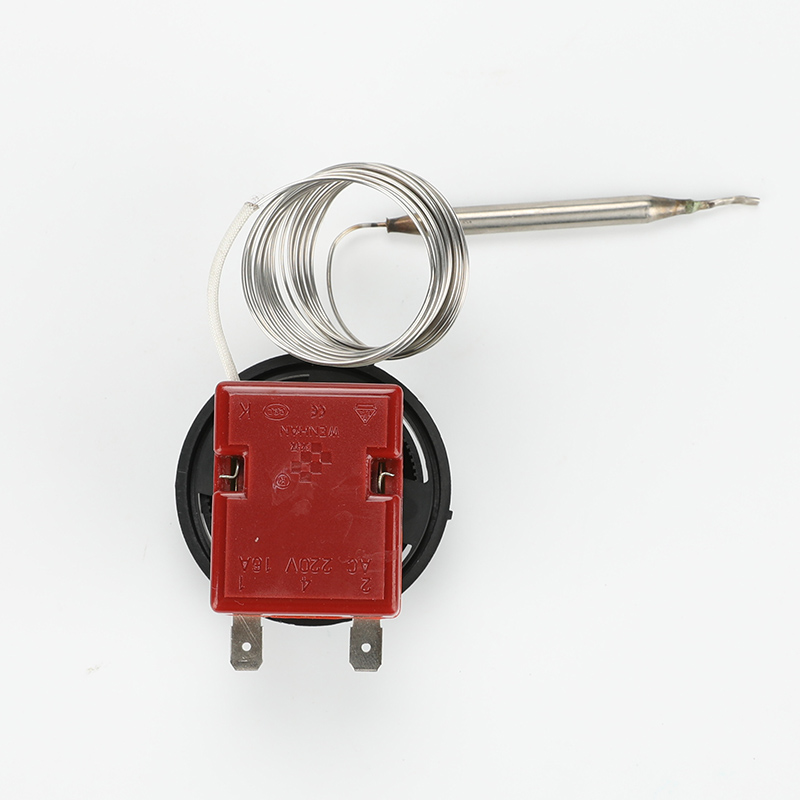

Knob Temperature Controller
The WZA-B Knob Temperature Controller adopts a high-precision capillary tube design, providing precise temperature regulation and control. Its durable structure is suitable for various environments , it has high reliability and stability. It is easy to install, meanwhile significantly improve system efficiency and performance, making it an ideal choice for industrial and commercial applications.
Model:WZA-B
Send Inquiry
Product Description
Knob Temperature Controller Features
WZA-B/C Series thermostat of pressure type is applicable for electric water heater, kitchenware, washing machine,electric oven
and boiled water device.
Knob Temperature Controller Technical data
| temperature range: | 0-320°C |
| capillary length: | 70CM, According to customer requirements |
| Warm package size: | Conventional diameter 6mm/8mm, According to customer requirements |
| Rated current: | 220VAC/16A |
| Temp Accuracy: | 5%FS |
| Differential stop: | 2-9°C |
| Installation size: | M4/28±0.5mm |
| Main body temperature tolerance: | 105℃ |
| electric strength: | AC2000V/1min |
| insulation resistance: | ≥100MΩ |
| contact resistance: | ≤50mΩ |
| minimum current: | 200mA |
| Temperature response rate: | ≤1.0℃/min |
| service life: | ≥ 100,000 |
| Test environment temperature: | 23±2℃ |
Moulnting and Appearance Dimensions
