Fryer Temperature Controller

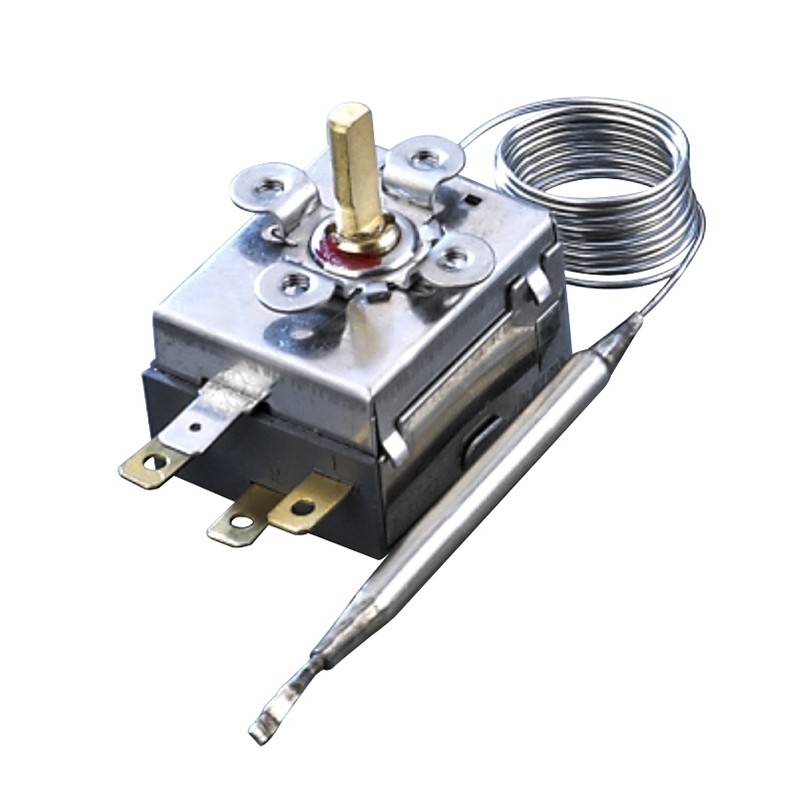

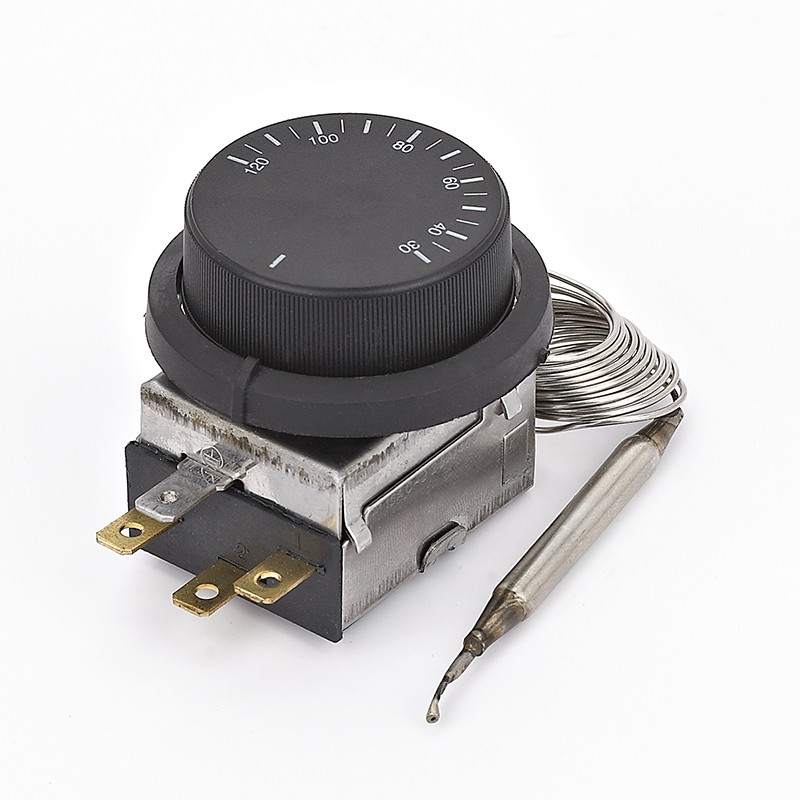

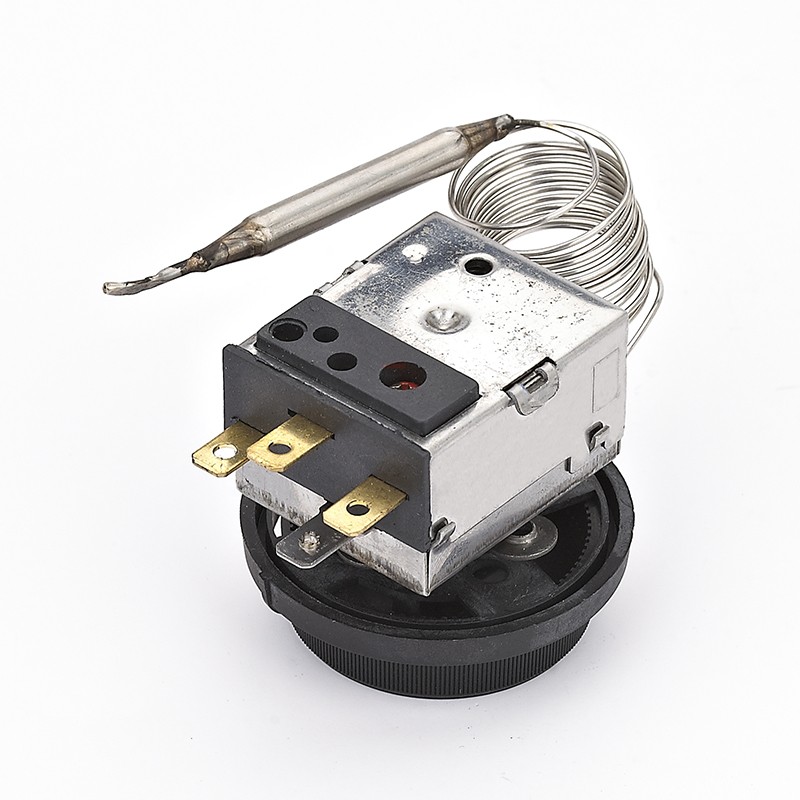

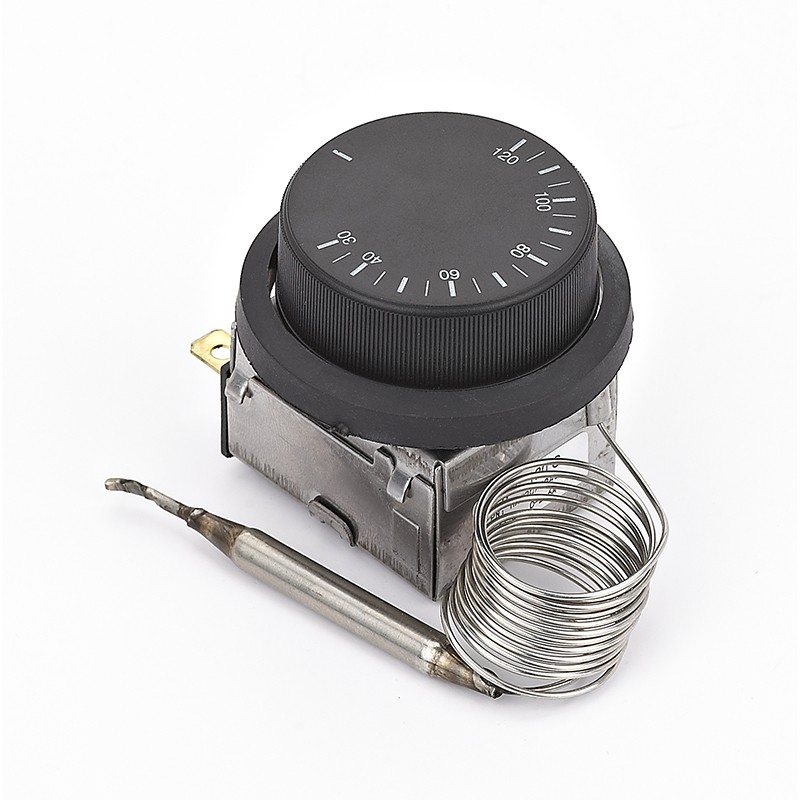

The WZA-C Fryer Temperature Controller adopts a high-precision capillary tube design, providing precise temperature regulation and control. The shell adopts stainless steel structure, its durable and suitable for various environments, with high reliability and stability. It is easy to install, with grounding wire for higher safety. It can significantly improve system efficiency and performance, making it an ideal choice for industrial and commercial applications.
Model:WZA-C
Send Inquiry
Product Description
Fryer Temperature Controller Features
WZA- B/C Series thermostat of pressure type is applicable for electric water heater, kitchenware, washing machine,electric oven
and boiled water device.
Fryer Temperature Controller Technical data
| temperature range: | 0-320°C |
| capillary length: | 70CM,According to customer requirements |
| Warm package size: | Conventional diameter 6mm/8mm, According to customer requirements |
| Rated current: | 220VAC/16A |
| Temp Accuracy: | 5%FS |
| Differential stop: | 2-9°C |
| Installation size: | M4/28±0.5mm |
| Main body temperature tolerance: | 105℃ |
| electric strength: | AC2000V/1min |
| insulation resistance: | ≥100MΩ |
| contact resistance: | ≤50mΩ |
| minimum current: | 200mA |
| Temperature response rate: | ≤1.0℃/min |
| service life: | ≥ 100,000 |
| Test environment temperature: | 23±2℃ |
Moulnting and Appearance Dimensions
