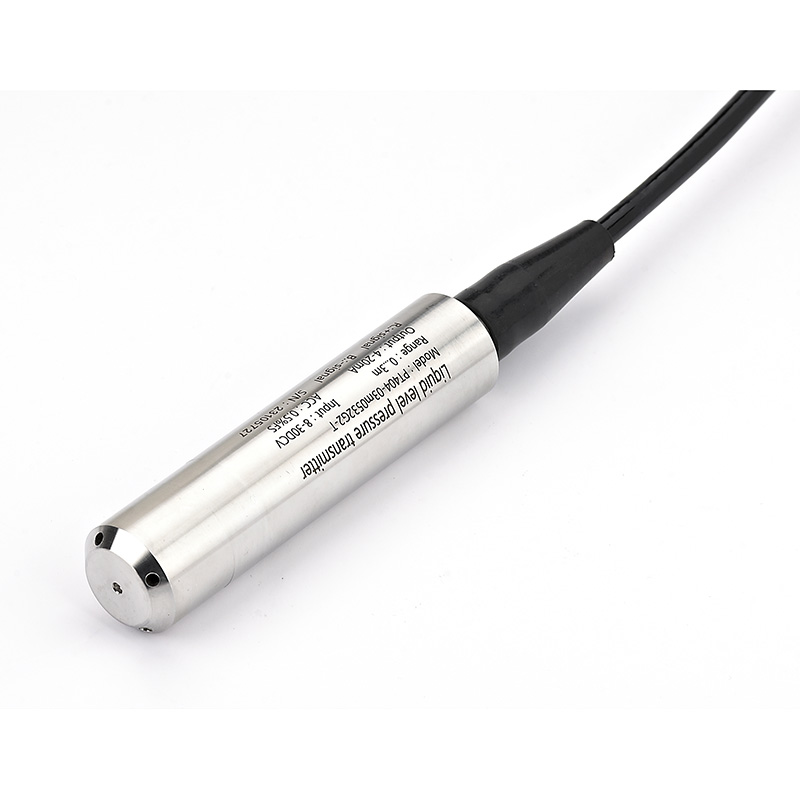

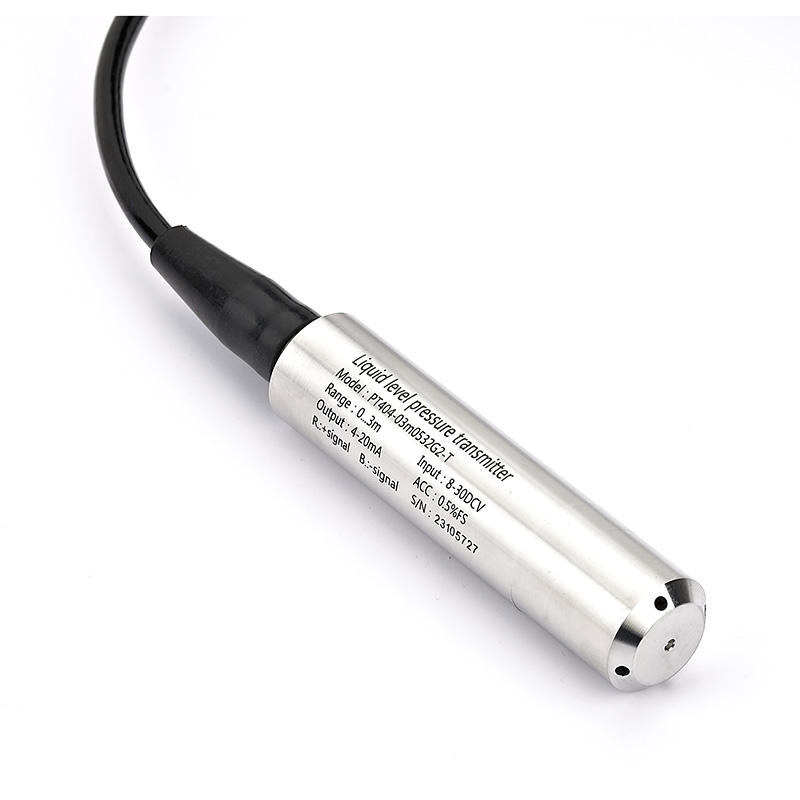

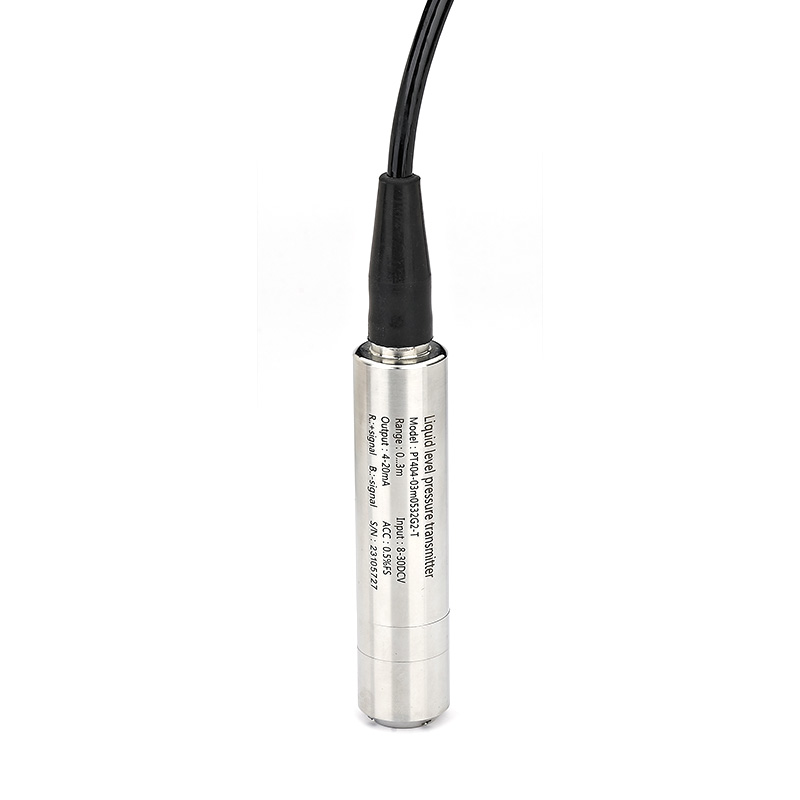

Liquid Level Pressure Transmitter
The liquid level pressure transmitter supplied by Huaxi is designed specifically for liquid level measurement, using high-precision sensor elements and stainless steel shell, with excellent corrosion resistance and waterproof performance. It's suitable for various liquid environments, providing stable and reliable data output. Its sturdy structure ensures long-term durability. It can significantly improve the efficiency and accuracy of liquid level monitoring, it's an ideal choice for industrial and environmental applications.
Model:PT400 Liquid Level Transmitter
Send Inquiry
Product Description
Liquid Level Pressure Transmitter Features
1. Specially designed for measuring liquid level directly into liquid, moisture-proof, freeze-proof and lightning-proof
2. Adopt imported high- precision diffused silicon pressure sensor
3. After digitied the signal, corrected the linear and the temperature drift compensation by computer and tested by aging facility, the output precision and long stability be guaranteed.
2. Adopt imported high- precision diffused silicon pressure sensor
3. After digitied the signal, corrected the linear and the temperature drift compensation by computer and tested by aging facility, the output precision and long stability be guaranteed.
Liquid Level Pressure Transmitter Technical data
| Model: | PT400 |
| Scale range: | 0-20M H2O （Customizable range） |
| Working voltage: | 8-32VDC,5VDC |
| Output signal: | 0~20Ma,0.5~4.5V，0/1~5/10V |
| Accuracy of measurement: | 0.5%FS |
| Pressure overload: | 200%FS |
| Working temperature: | -20~85℃ |
| Wire: | PVC |
| Dielectric materials: | SUS316 |
| Electric port: | Direct lead wire |
| IP: | IP68 |
Product Model And Parameter
Temperature type (T: high temperature type N: normal temperature type)
Output type (1: 0.5-4.5V 2: 4-20mA 3: 0-10V)
Pressure type (G: gauge pressure)
Case type (1: straight shoulder type 2: oblique shoulder type 3: small type)
Cable type (1: Polyethylene 2: Polyvinyl chloride PVC 3: Polyurethane PU)
Accuracy (02: 0.2% 05: 0.5% 10: 1%)
Range (M: meter)
Large type
Output type (1: 0.5-4.5V 2: 4-20mA 3: 0-10V)
Pressure type (G: gauge pressure)
Case type (1: straight shoulder type 2: oblique shoulder type 3: small type)
Cable type (1: Polyethylene 2: Polyvinyl chloride PVC 3: Polyurethane PU)
Accuracy (02: 0.2% 05: 0.5% 10: 1%)
Range (M: meter)
Large type
Mounting and Appearance Dimensions
