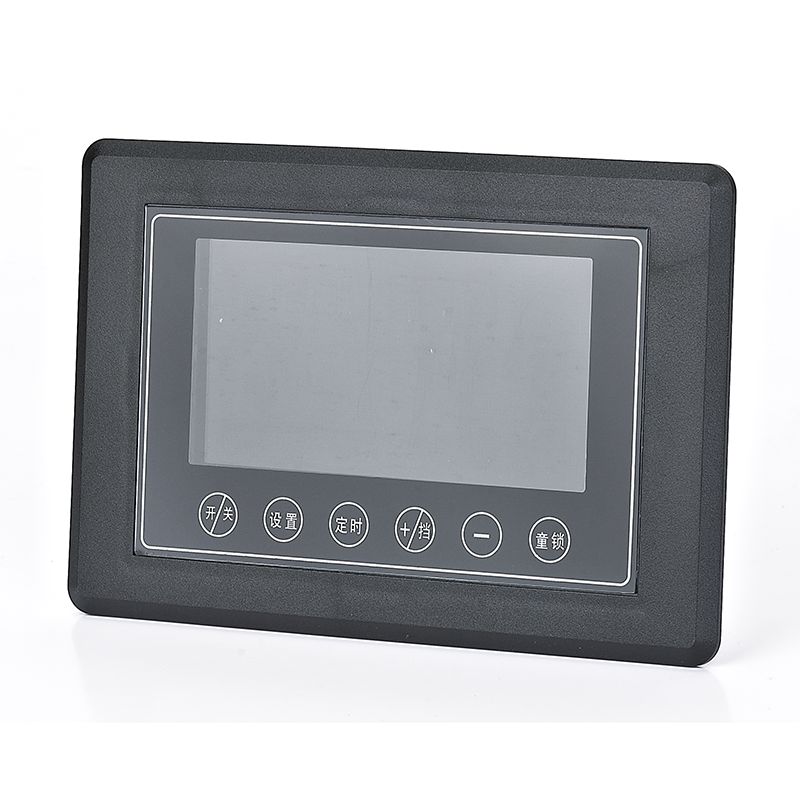

LCD Heating Boiler Controller
Huaxi factory's LCD heating boiler controller adopts a standard 12KW power design and has an intelligent control mode, specially designed for use with heating and heating equipment. It has intuitive display of temperature and circulation function, room temperature display, return water temperature viewing, built-in adjustable differential temperature, and timing function. Its motherboard can be expanded to increase power and used flexibly.
Model:HX60-C
Send Inquiry
Product Description
1. color LCD display / Monochrome LCD display
2. touch button
3. intelligent temperature control
4. automatic hot water circulation
5. Return water control
6. dd room temperature control mode for more comfort
7. third gear heating
8. Eight-stage timing, set the water temperature in sections
9. Leakage protection
10. Anti-dry burn protection
11. over temperature protection
12. remote control
13. WiFi control
2. touch button
3. intelligent temperature control
4. automatic hot water circulation
5. Return water control
6. dd room temperature control mode for more comfort
7. third gear heating
8. Eight-stage timing, set the water temperature in sections
9. Leakage protection
10. Anti-dry burn protection
11. over temperature protection
12. remote control
13. WiFi control
LCD Heating Boiler Controller Product Model And Parameter
| Product type | HX60-C | |
| supply power | 165-275V | |
| Heating Stop temperature | 20-85℃ | |
| Heating Start up returndifference | 5-20℃ | |
| heating gear | 1-3 | |
| circulating water control temperature | 10-60℃ | |
| room temperature control | 10-35℃ | |
| number of time periods | 8 segments | |
| Leakage Protection | yes | |
| freeze-proofing | yes | |
| Anti-dry buming | yes | |
| over temperature protection | yes | |
| remote control | yes | |
| wifi function | optional | |
| load voltage | 220V | |
| 380V | ||
| load quantity | Host | 3 |
| Passive expansion board | no | |
| Active expansion board | no | |
Mounting and Appearance Dimensions
