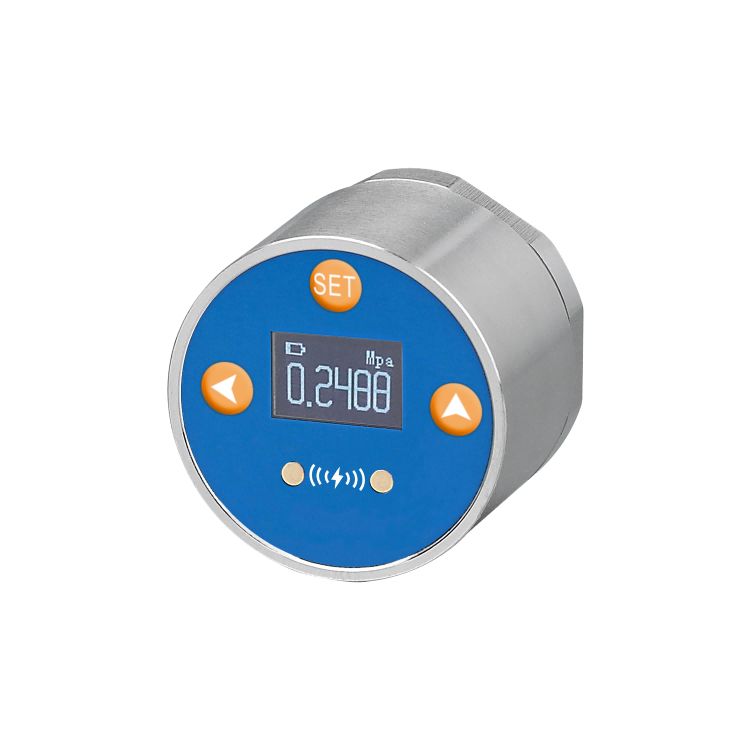

High Pressure Mini Digital Pressure Gauge

The high pressure mini digital pressure gauge from Huaxi manufacturer is designed for precise measurement of high-pressure environments, with clear digital display and fast response capabilities. It has a compact structure, easy installation, built-in battery, long endurance, and is used in various industrial occasions. The internal structure adopts glass micro soluble structure, high pressure resistance, strong stability and other characteristics.

Model:DPG-G

Send Inquiry

Product Description

High pressure mini digital pressure gauge is a portable high-pressure pressure gauge. Measuring range can accurately measure the pressure value in high pressure environment. It can detect high pressure air pressure, oil pressure, water pressure and other pressures.Widely used in firearms, diving high-pressure gas cylinders, petroleum, chemical, natural gas and so on.

Features:

1、 Compact and mini, install in narrow space
2、 Stainless steel shell, delicate and beautiful
3、 Integrated design against shock and vibration resistance
4、 Precision circuit design with strong anti-interference ability
5、 Waterproof grade: lP65

Technical parameter

Model	Working voltage	Pressure range	Display accuracy	Dial size	Interface thread	Operating temperature	Signal transmission
DPG-G	5V charging type	0-40Mpa	0.01	29.3mm	M10*1	0-50℃	no
		0-60Mpa	0.01	29.3mm	M10*1	0-50℃	no
		0-180Mpa	0.1	29.3mm	M10*1	0-50℃	no
