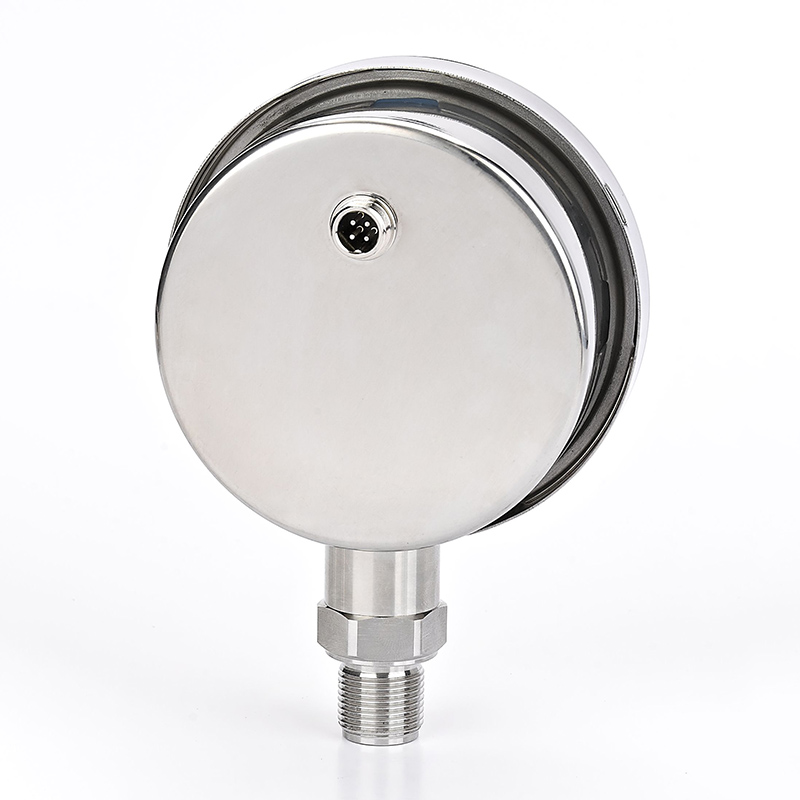

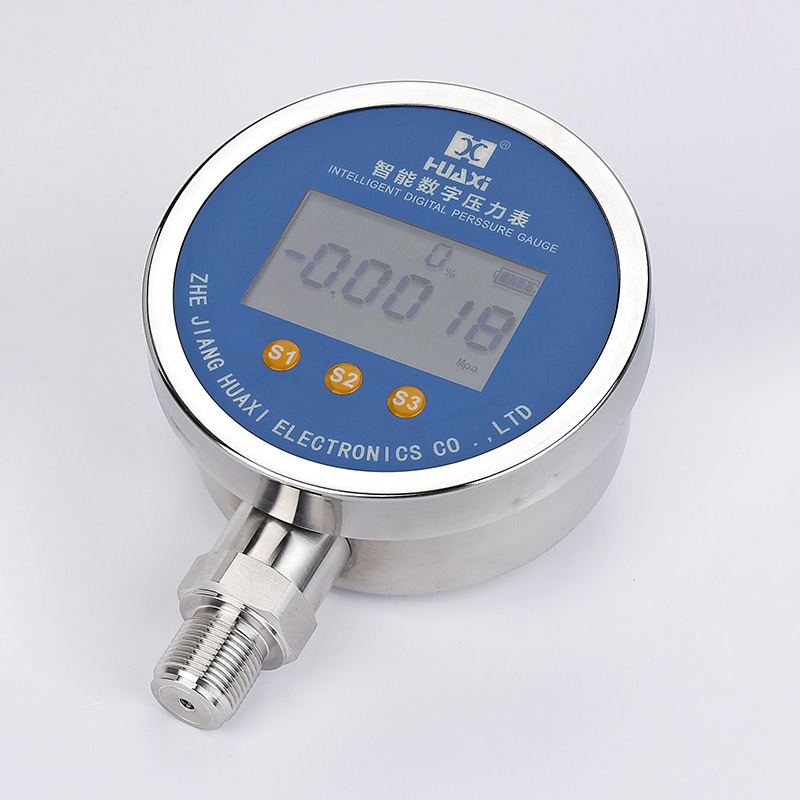

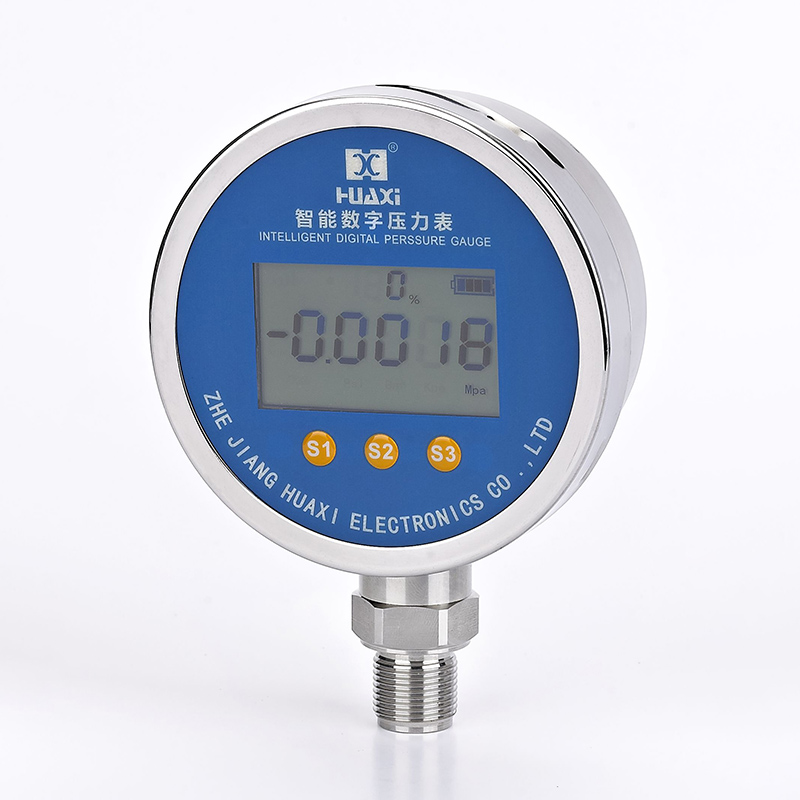

Digital Pressure Transducer Sensor
The Huaxi factory's digital pressure transducer sensor provides multiple measurement units, such as psi, bar, kPa, and MPa, making it more flexible and convenient in different applications. It is designed with low power consumption, long battery life, large screen LCD display technology, and unique background light technology, making the data clear and easy to read even at night. It can be used as an on-site calibration instrument. It has high precision and can detect small changes in pressure, and is widely used in petroleum, chemical, power, metallurgy, pharmaceuticals, food, environmental protection, scientific research, etc.
Model:DPG Digital Pressure Gauge
Send Inquiry
Product Description
Product Overview
DPG Digital Pressure Gauge is another series widely used products which are designed by scientific researchers and technicians
according to years of production experience and market demand, with complete hardware and software, stable and reliable performance.
Digital pressure transducer sensor can be used as high accuracy calibration standard (meter), but also as a field calibration instrument, widely used in metallurgy, petroleum, chemical, electric power, natural gas, measurement and scientific research and other departments.
Digital pressure transducer sensor can be used as high accuracy calibration standard (meter), but also as a field calibration instrument, widely used in metallurgy, petroleum, chemical, electric power, natural gas, measurement and scientific research and other departments.
Features
1. Visually display the percentage of pressure
2. Self-calibration program users can achieve self- calibration correction
3. The collection speed can be set (0.3~10) s/ time
4. Signal isolation technology, anti- electromagnetic and radio frequency interference technology, zero self-stabilization technology, temperature compensation technology
2. Self-calibration program users can achieve self- calibration correction
3. The collection speed can be set (0.3~10) s/ time
4. Signal isolation technology, anti- electromagnetic and radio frequency interference technology, zero self-stabilization technology, temperature compensation technology
Product Model Definition
Range: 0-60Mpa, 0-10Mpa, 0-2Mpa, etc. according to customer needs
Dial size: 100mm, 80mm, 60mm
Function: M: DC24V with remote transmission 485 D: Battery model without remote transmission 485
Model category: DPG: Digital pressure gauge
Dial size: 100mm, 80mm, 60mm
Function: M: DC24V with remote transmission 485 D: Battery model without remote transmission 485
Model category: DPG: Digital pressure gauge
Mounting and Appearance Dimensions
Technical parameter
| Model | Working voltage | Pressure range | Precision class | Dialsize | Joint thread | Operating temperature | Signal transmission |
| DPG-D | 3-5V Battery | 0-60MPA | 0.5%F.S | 100mm, 80mm, 60mm | M20*1.5-6g | 0-50℃ |
- |
| DPG-M | 12-24V | 0-60MPA | 0.5%F.S | 100mm, 80mm, 60mm | M20*1.5-6g | 0-50℃ | 485 Communications |
