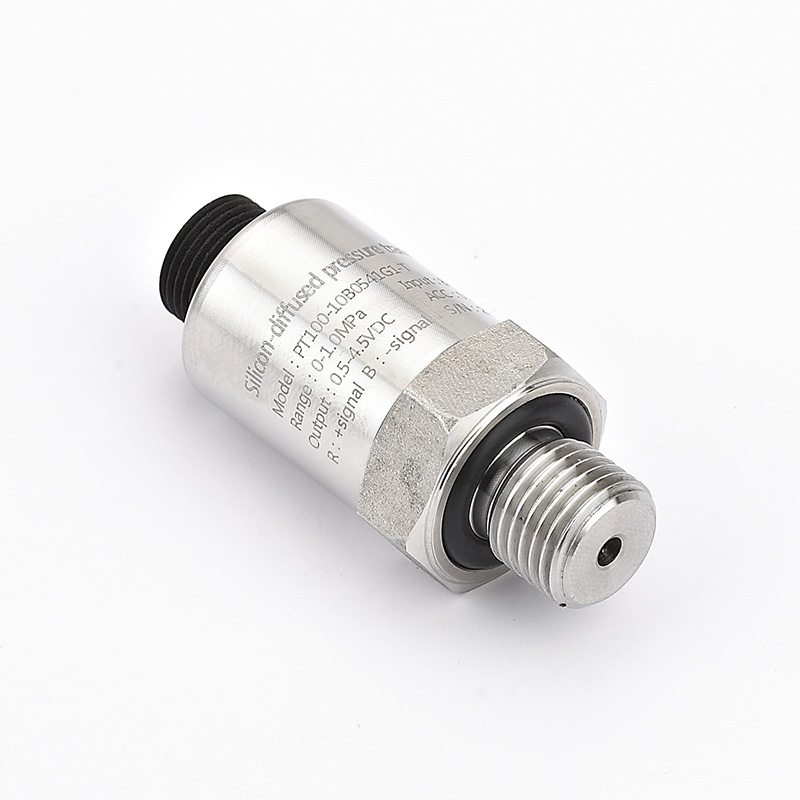

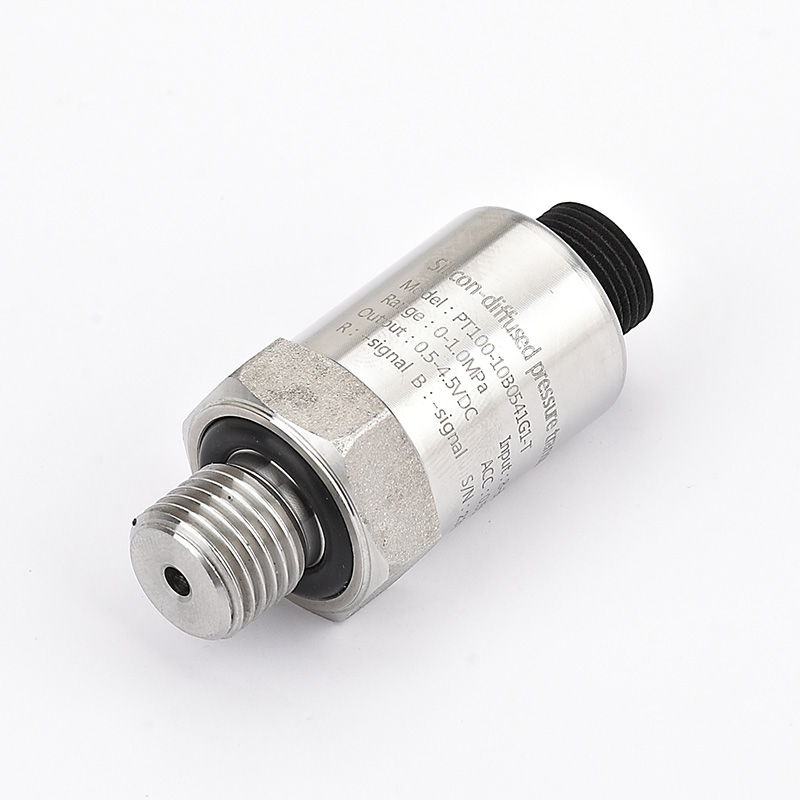

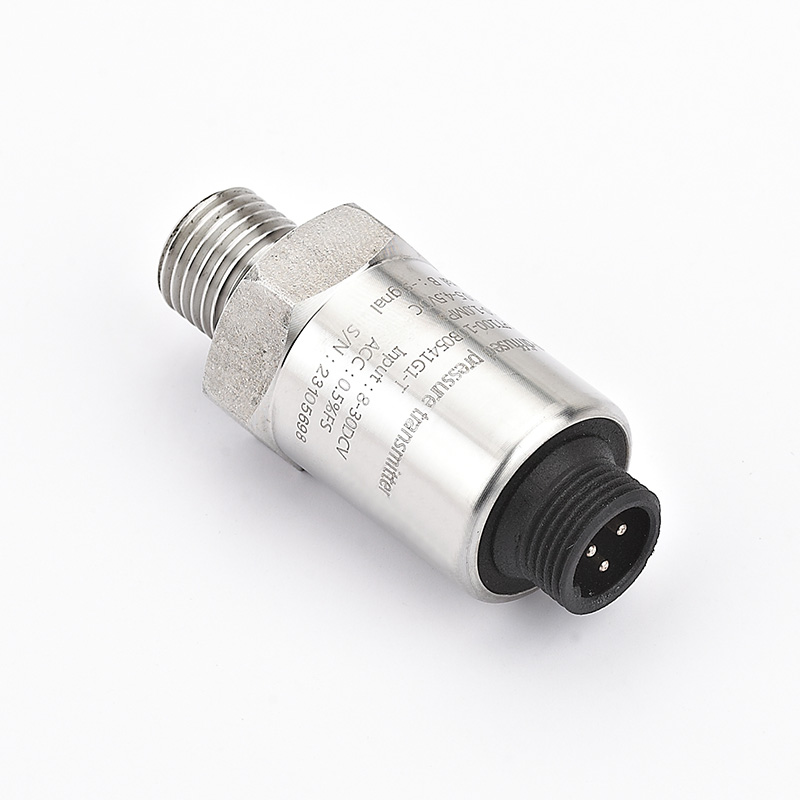

Diffused Silicon Pressure Transmitter
The diffused silicon pressure transmitter of China Huaxi adopts a high-precision diffused silicon chip and stainless steel integrated structure, which has the characteristics of anti-interference, anti surge, and high voltage resistance, ensuring stable and reliable signals. It is suitable for fields such as water treatment and industrial automation. Its high stability and reliability make it an ideal choice for optimizing control systems. It can effectively improve system performance and durability.
Model:PT100 Pressure Transmitter
Send Inquiry
Product Description
Diffused Silicon Pressure Transmitter Features
1.Imported high performance diffused silicon microchipused as the core sensing element, vacuum oilflledpackaging process,
excellent ability in against overload, water hammer and freezing.
2.High performance electronic components and excellent circuit design, with excellent anti-interference and anti-surge ability, easy to deal with high-power inverter and other strong interference occasions.
3.After digitized the signal, corrected the linear and the temperature drift compensation by computer and tested by aging facility, the output precision and long stability be guaranteed.
2.High performance electronic components and excellent circuit design, with excellent anti-interference and anti-surge ability, easy to deal with high-power inverter and other strong interference occasions.
3.After digitized the signal, corrected the linear and the temperature drift compensation by computer and tested by aging facility, the output precision and long stability be guaranteed.
Diffused Silicon Pressure Transmitter Technical data
| 1.Supply voltage: | (9～32)VDC |
| 2.Output signal: | 4-20mA,2-wire |
| 3.Max.load: | ≧4.7k0hm |
| 4.Current consumption: | ﹤4mA |
| 5.Pressure range : | 0-16 bar |
| 6.Over pressure safety: | 52 bar |
| 7.Burst pressure: | 70 bar |
| 8.Life expectancy: | 5.000.000 (operations) |
| 9.Accuracy: | ±0.5 % FS (at room temperature) |
| 10.Long term stability: | ± 0.25%FS p.a. |
| 11.Repeatability: | ± 0.1% FS(at room temperature) |
| 12.Temperature failure: | ± 0.03% FS/℃ |
| 13.Temperature compensation: | 0℃...+70 ℃ max. ﹤2% |
| 14.Temperature ambient: | -40℃....+100 ℃ |
| 15.Temp.-range media: | -40℃...+120 ℃ |
| 16.Housing: | stainless steel (AISI 304) |
| 17.Material in contact with the medium: | stainless steel (AISI 316) |
| 18.Measurement cell: | diffused silicon |
| 19.Sealing material: | All welded process, no rubber material |
| 20.Torque safety: | 40N.m |
| 21.Insulation resistance: | ﹥ 100 Mohm (35VDC) |
| 22.Resistance against vibrations: | 20g/4-2000 Hz Sine DINEN 60068-2-6 |
| 23.Resistance against shock: | 500m/S²; 11ms semi-sine DIN EN 60068-2-27 |
| 24.Degree of protection: | IP65 |
| 25.EMC: | EMV 2014/30/EU, EN61000-6-2:2005, EN61000-6-3:2007 |
Product size parameters:
Product Model And Parameter
Temperature type (T: high temperature type N: normal temperature type)
Output type (1: 0.5-4.5V 2: 4-20mA 3: 0-10V)
Pressure type (A: absolute pressure G: gauge pressure)
Threaded interface (1: G1/4 2: G1/2 3: M10x1 4: M20x1.5 5: M12x1.5 6: M16x1.5 7: M14x1.5 8: 7/16-UNF 9: 7/16-UNF inner 10: M18x1.5)
Electrical connection (1: Hirschmann 2: Parker connector 3: waterproof connector 4: aviation plug 5: plastic direct 6: pin connector 7: M12 aviation plug 8: Bosch: 1928.403.968)
Accuracy (02: 0.2% 05: 0.5% 10: 1%)
Range (M: Mpa B: Bar)
Model: PT100
Output type (1: 0.5-4.5V 2: 4-20mA 3: 0-10V)
Pressure type (A: absolute pressure G: gauge pressure)
Threaded interface (1: G1/4 2: G1/2 3: M10x1 4: M20x1.5 5: M12x1.5 6: M16x1.5 7: M14x1.5 8: 7/16-UNF 9: 7/16-UNF inner 10: M18x1.5)
Electrical connection (1: Hirschmann 2: Parker connector 3: waterproof connector 4: aviation plug 5: plastic direct 6: pin connector 7: M12 aviation plug 8: Bosch: 1928.403.968)
Accuracy (02: 0.2% 05: 0.5% 10: 1%)
Range (M: Mpa B: Bar)
Model: PT100
