12KW Heating Controllers

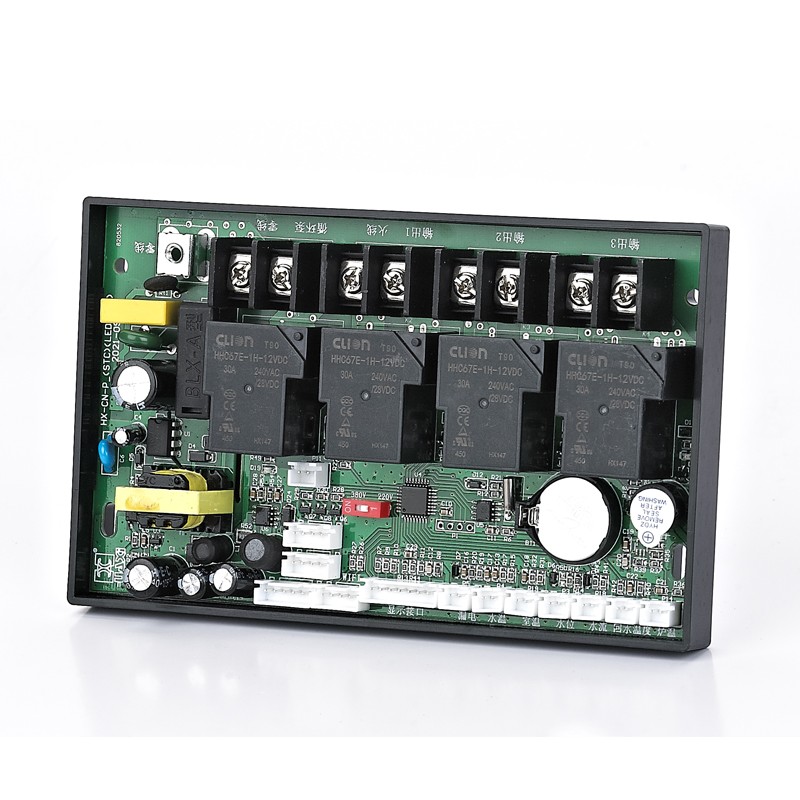

The 12KW heating controllers offered from China Huaxi adopts a standard 12KW power design, with intelligent control mode, specially designed for use with heating and heating equipment. It intuitively displays temperature and cycling functions, with built-in adjustable differential temperature and timing functions. Its motherboard can be expanded to increase power and used flexibly.
Model:HX60-E
Send Inquiry
Product Description

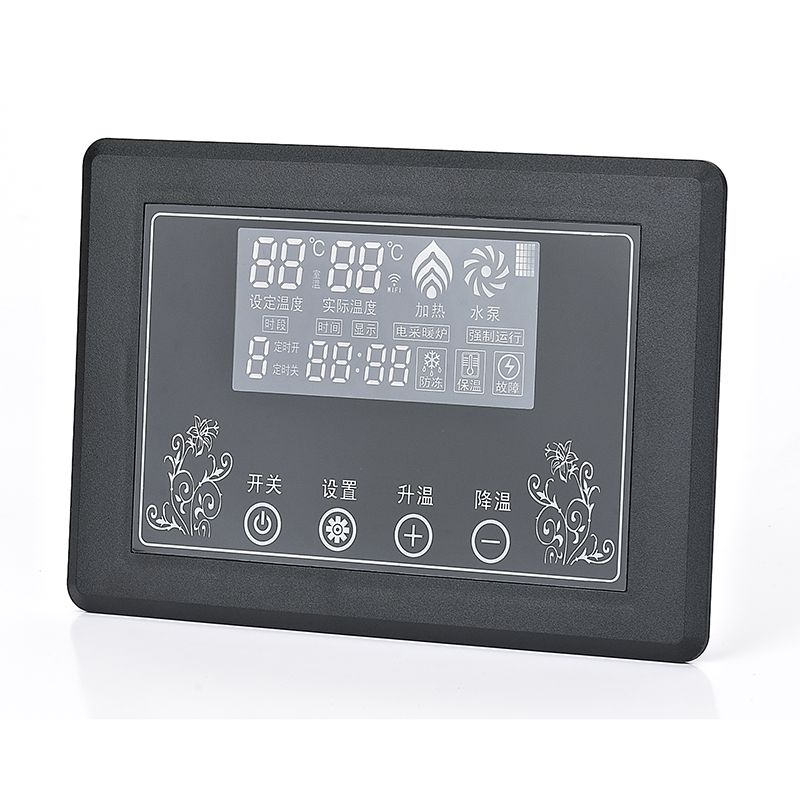

1. color LED display
2. touch button
3. intelligent temperature control
4. automatic hot water circulation
5. Eight-stage timing, set the water temperature in sections
6. Third gear heating
7. Leakage protection
8. Anti-dry burn protection
9. over temperature protection
10. remote control
11. WiFi control
2. touch button
3. intelligent temperature control
4. automatic hot water circulation
5. Eight-stage timing, set the water temperature in sections
6. Third gear heating
7. Leakage protection
8. Anti-dry burn protection
9. over temperature protection
10. remote control
11. WiFi control
12KW Heating Controllers Product Model And Parameter
| Product type | HX60-E | |
| supply power | 165-275V | |
| Heating Stop temperature | 20-85℃ | |
| Heating Start up returndifference | 5-20℃ | |
| heating gear | 1-3 | |
| circulating water control temperature | 10-60℃ | |
| room temperature control | 10-35℃ | |
| number of time periods | 8 segments | |
| Leakage Protection | yes | |
| freeze-proofing | yes | |
| Anti-dry buming | yes | |
| over temperature protection | yes | |
| remote control | yes | |
| wifi function | optional | |
| load voltage | 220V | |
| 380V | ||
| load quantity | Host | 3 |
| Passive expansion board | no | |
| Active expansion board | no | |
Mounting and Appearance Dimensions
