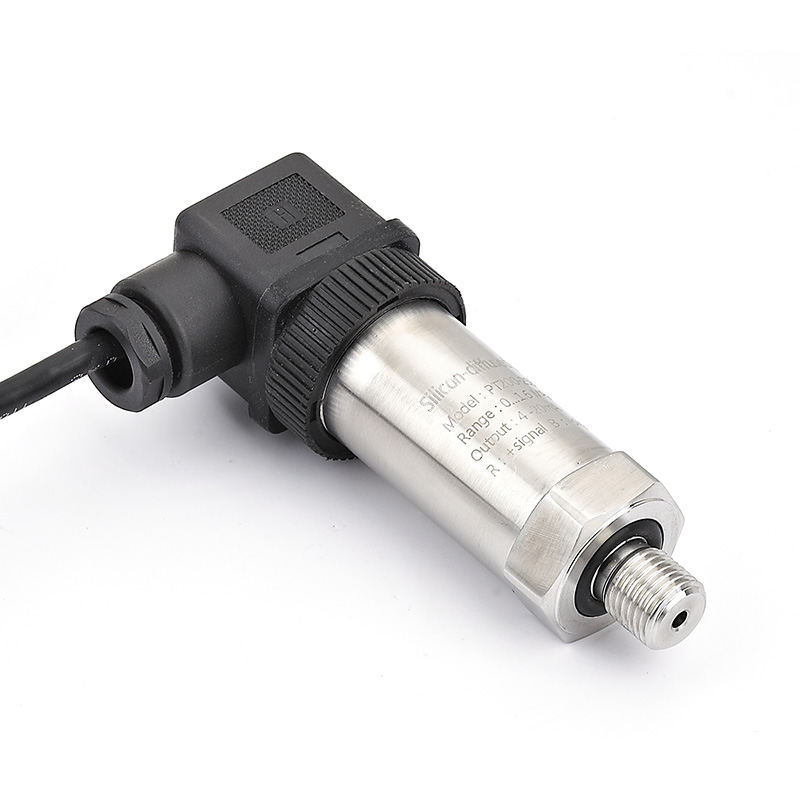

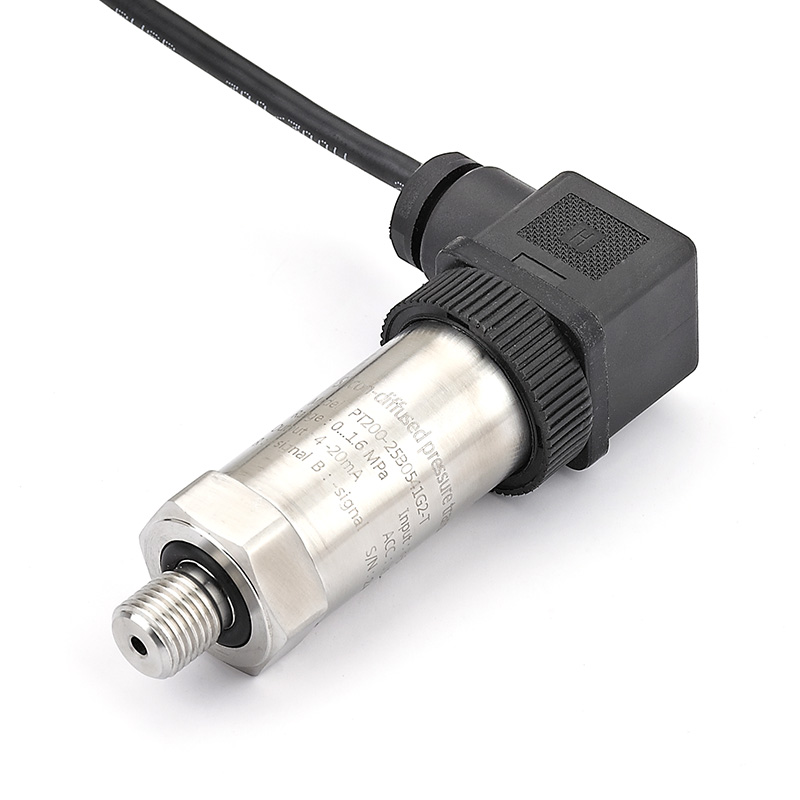

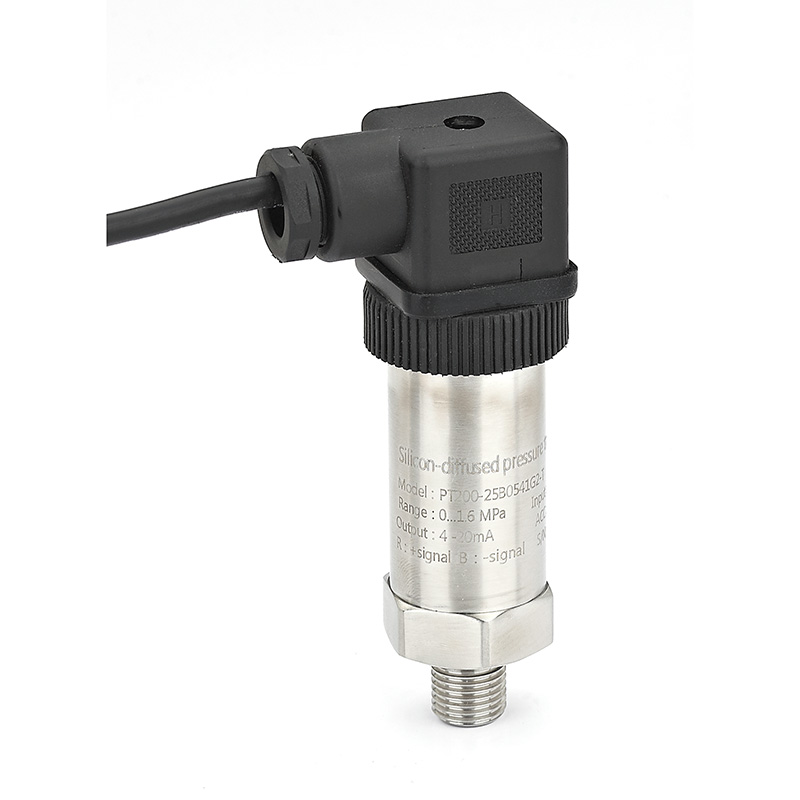

Hersman Digital Pressure Transmitter
The Hersman digital pressure transmitter manufactured by Huaxi adopts high-precision sensing technology and has excellent stability and anti-interference ability. Its durable stainless steel structure is suitable for various industrial environments, ensuring reliable data output. It can effectively improve system performance and reliability, making it an ideal choice for optimizing industrial processes.
Model:PT200 Pressure Transmitter
Send Inquiry
Product Description
Hersman Digital Pressure Transmitter Features
1.Imported high performance diffused silicon microchipused as the core sensing element, vacuum oilflledpackaging process,
excellent ability in against overload, water hammer and freezing.
2.High performance electronic components and excellent circuit design, with excellent anti-interference and anti-surge ability, easy to deal with high-power inverter and other strong interference occasions.
3.After digitized the signal, corrected the linear and the temperature drift compensation by computer and tested by aging facilit, the output precision and long stability be guaranteed.
2.High performance electronic components and excellent circuit design, with excellent anti-interference and anti-surge ability, easy to deal with high-power inverter and other strong interference occasions.
3.After digitized the signal, corrected the linear and the temperature drift compensation by computer and tested by aging facilit, the output precision and long stability be guaranteed.
Hersman Digital Pressure Transmitter Technical data
| 1.Supply voltage: | (9～32)VDC |
| 2.Output signal: | 4-20mA,2-wire |
| 3.Max.load: | ≧4.7k0hm |
| 4.Current consumption: | ﹤4mA |
| 5.Pressure range : | 0-60 bar |
| 6.Over pressure safety: | 80 bar |
| 7.Burst pressure: | 120 bar |
| 8.Life expectancy: | 5.000.000 (operations) |
| 9.Accuracy: | ±0.5 % FS (at room temperature) |
| 10.Long term stability: | ± 0.25%FS p.a. |
| 11.Repeatability: | ± 0.1% FS(at room temperature) |
| 12.Temperature failure: | ± 0.03% FS/℃ |
| 13.Temperature compensation: | 0℃...+70 ℃ max. ﹤2% |
| 14.Temperature ambient: | -40℃....+100 ℃ |
| 15.Temp.-range media: | -40℃...+120 ℃ |
| 16.Housing: | stainless steel (AISI 304) |
| 17.Material in contact with the medium: | stainless steel (AISI 316) |
| 18.Measurement cell: | diffused silicon |
| 19.Sealing material: | All welded process, no rubber material |
| 20.Torque safety: | 40N.m |
| 21.Insulation resistance: | ﹥ 100 Mohm (35VDC) |
| 22.Resistance against vibrations: | 20g/4-2000 Hz Sine DINEN 60068-2-6 |
| 23.Resistance against shock: | 500m/S²; 11ms semi-sine DIN EN 60068-2-27 |
| 24.Degree of protection: | IP65 |
| 25.EMC: | EMV 2014/30/EU, EN61000-6-2:2005, EN61000-6-3:2007 |
Product size parameters:
Product Model And Parameter
Temperature type (T: high temperature type None: normal temperature type)
Output type (1: 0.5-4.5V 2: 4-20mA 3: 0-10V)
Pressure type (A: absolute pressure G: gauge pressure)
Threaded interface (1: G1/4 2: G1/2 3: M10x1 4: M20x1.5 5: M12x1.5 6: M16x1.5 7: M14x1.5 8: 7/16-UNF 9: 7/16-UNF 10: M18x1.5)
Display type (1: digital display 2: LCD display)
Accuracy (02: 0.2% 05:0.5% 10:1%)
Range (M: Mpa B: Bar)
Model: PT200
Output type (1: 0.5-4.5V 2: 4-20mA 3: 0-10V)
Pressure type (A: absolute pressure G: gauge pressure)
Threaded interface (1: G1/4 2: G1/2 3: M10x1 4: M20x1.5 5: M12x1.5 6: M16x1.5 7: M14x1.5 8: 7/16-UNF 9: 7/16-UNF 10: M18x1.5)
Display type (1: digital display 2: LCD display)
Accuracy (02: 0.2% 05:0.5% 10:1%)
Range (M: Mpa B: Bar)
Model: PT200
