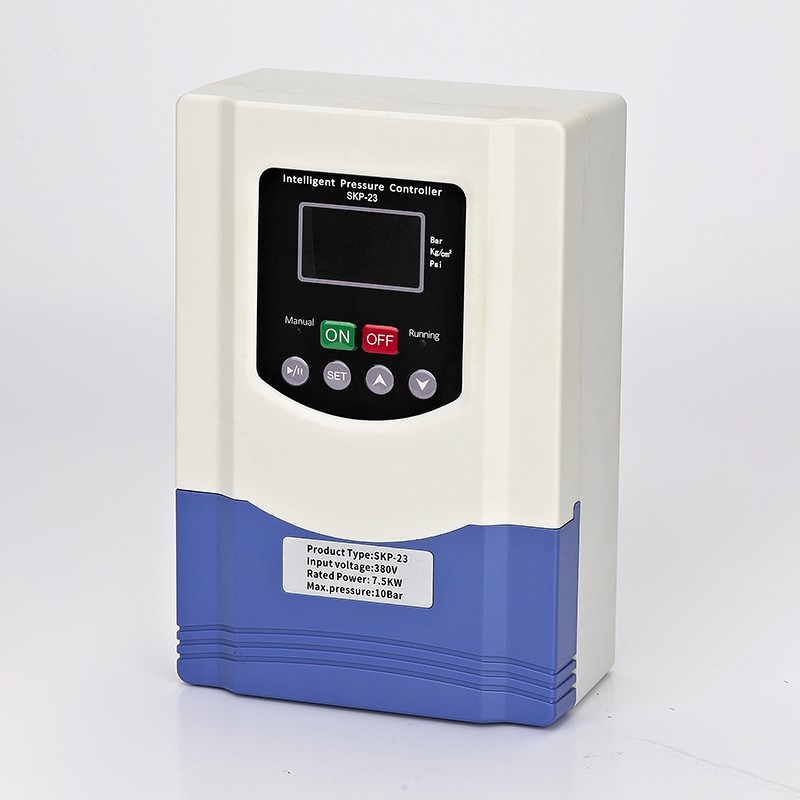

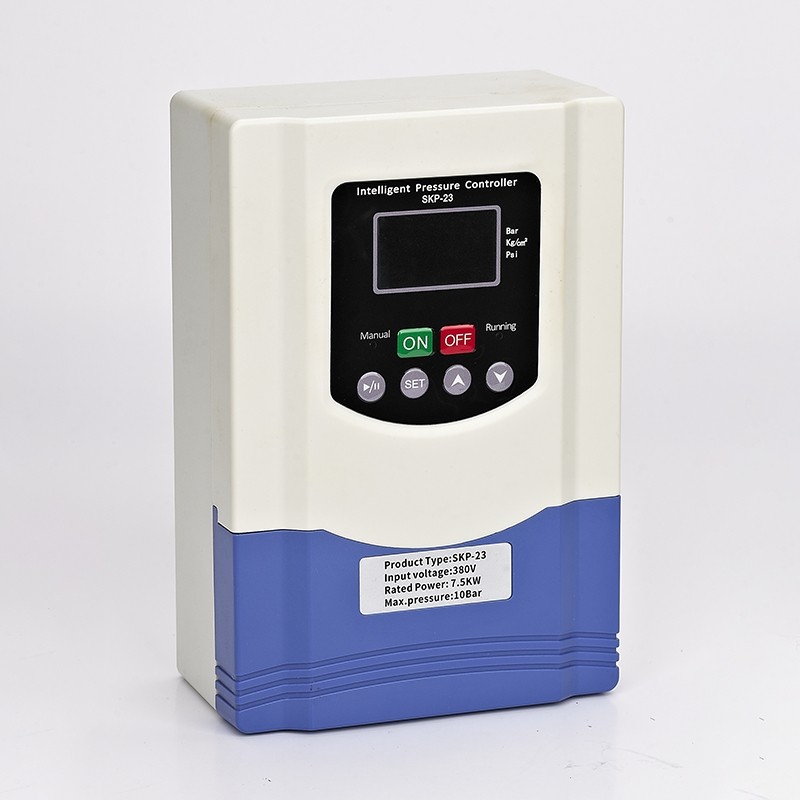

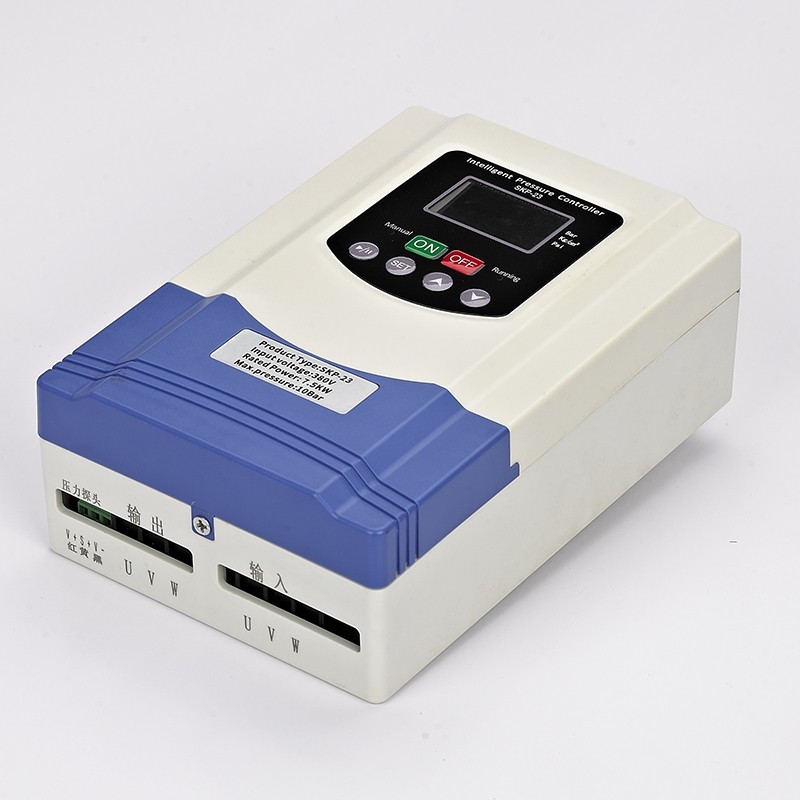

380V Water Pump Pressure Controller

The SKP-23 380V water pump pressure controller manufactured by Huaxi is an efficient and energy-saving device designed with 380V voltage for high-power water pumps. It has functions such as automatic start stop, overload and water shortage protection to ensure the safe operation of the water pump. Its intelligent pressure regulation is suitable for agricultural irrigation, industrial water use, and household water supply, and supports fault alarm. This product is easy to install and has reliable performance, making it an ideal choice for improving water system efficiency. Purchasing this equipment can effectively extend the service life of the water pump.

Model:SKP-23

Send Inquiry

Product Description

380V Water Pump Pressure Controller Features

1.3 phase 380V water pump pressure controller equipped with our latest designed oil-filled diffused silicon pressure sensor, all stainless steel material for shell, against the interference/erosion/freeze/shock, high precision and stability. Perfectly solve the problems such as poor water hammer resistance and frost resistance because of equipped with ceramic sensor and no oilfilled diffused silicon sensor in the current market.
2. Water shortage and overload protection, avoid electric motor stuck, stalled and idled, protect the electric motor effectively.
3. Backed by upgraded programs, can be fully suited for different applications: No water supply Water tower supply Pressure water tank supply.
4. Outdoor type equipped with mounting rod, can be mounted on the base together with pump, double design to get better waterproof performance.

380V Water Pump Pressure Controller Technical data

Model: SKP-23
Working voltage: 380VAC
Load power: ≤7500W
Control mode: Water pressure
Protection function: Water shortage protection, overload protection
Pressure range: 0-20Bar
Precision: 0.01Bar
Shell material: ABS
Output connection: Stud wiring
Appearance size: 210x140x75(mm)

Mounting and Appearance Dimensions

380V Water Pump Pressure Controller
